7.3m large satellite dish for sale
Where to buy 7.3m large satellite dish with low price and high quality. We are your best choice, all the information about 7.3m large satellite dish are available as below.
7.3m large satellite dish Description

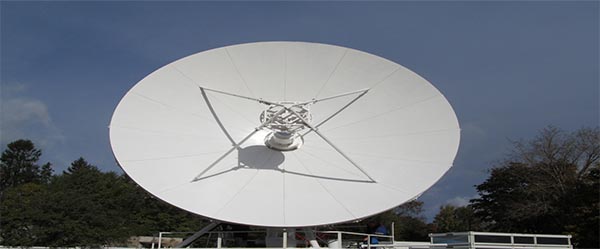

7.3m large satellite dish , which uses a shaped parabolic reflector, provides high gain and exceptional pattern characteristics as well as low VSWR. Its electric performance meets the FCC regulation 25.209, IESS (Intelsat), or ITU-RS Recommendation 580 sidelobe specification (domestic and international standards). The main reflector surface is comprised of 16 individual adjustable aluminum panels. The panels of the main reflector are comprised of aluminum sheets and ribs which are stretch-formed, and are riveted on the special mould. The 7.3m antenna structure consists of the pedestal, reflector, sub reflector and the feed system.
7.3m large satellite dish Features
There are linear and circular polarization feed system as options
Assembling and testing of feed system before leaving factory
Easy and cheap shipping package with compact design
Optional fixed and motorizable pedestals
With hot-dip galvanizing steel structure
Aluminum reflector is made through stretch forming craft and can align automatically
We provide 2 port or 4 port for your choice
Antenna is ensured with superior quality
7.3m large satellite dish Technical Specifications
7.3m large satellite dish ELECTRICAL SPECIFICATION | ||||
Diameter | 7.3M | |||
Operating Frequency, GHz | C-Band | Ku-Band | ||
Receive | Transmit | Receive | Transmit | |
3.625-4.2 | 5.85~6.425 | 10.95-12.75 | 13.75-14.5 | |
Gain, Mid-band, dBi | 47.85 | 51.42 | 57.6 | 58.53 |
Tx. Power Capability, KW | 5 | 2 | ||
-3dB Beam Width | 0.666° | 0.44° | 0.216° | 0.19° |
VSWR | 1.25 | 1.25 | 1.25 | 1.25 |
Feed Interface | CPR-229G | CPR-159G/137G | WR-75 | WR-75 |
XPD (on Axis), dB | 35 | 35 | 35 | 35 |
Radiation Pattern:First Sidelobe | CCIR 580-4 | |||
Isolation, Tx to Rx, dB | 85 | |||
Antenna Noise Temperature
10° Elevation 20° Elevation 40° Elevation |
35°K
27°K 25°K |
60°K
50°K 48°K |
||
XPD across 1dB Beam Width, dB | 33 | 33 | 33 | 33 |
Feed Insertion Loss, dB | 0.25 | 0.2 | 0.25 | 0.25 |
7.3m large satellite dish ENVIRONMENTAL SPECIFICATION | |
Operational Wind | 72km/h |
Survival Wind | 200km/h |
Seismic (Survival) | 0.3g (H),0.15g(V) |
Snow | 30mm |
Relative Humidity | 0% ~ 100% |
Temperature | -45°C~ +60°C |
7.3m large satellite dish MECHANICAL SPECIFICATION | |
Reflector Accuracy(RMS) | ≤0.35mm |
Azimuth | ± 85° |
Antenna Type | Ring Focus Antenna |
Elevation | 0°~90° |
Antenna Pedestal Type | Kingpost Pedestal |
Antesky is a professional large satellite dish manufacturer, which was established in 1985 under the support of Chinese governmental
research institutions. At previous time, we mainly customized antennas for Chinese aerospace and military application. From the year 2008, we began to produce civilian antennas. However, Antesky manufactures civilian antennas according to military standard all the time, so the antenna quality is with high reputation in the world.
