6.2m earth station antenna Description

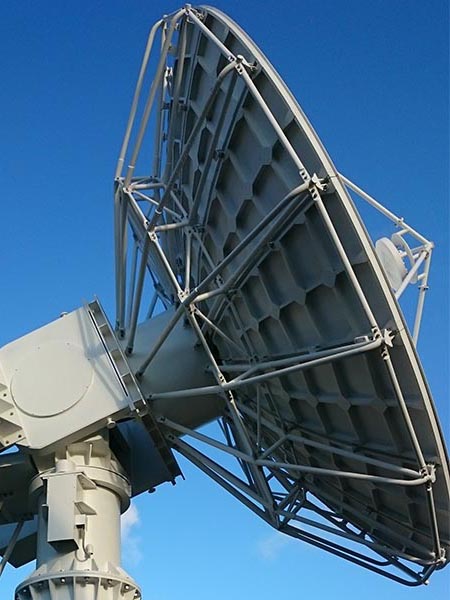

Our 6.2m earth station antenna, which uses a shaped parabolic reflector, provides high gain and exceptional pattern characteristics as well as low VSWR. The panels of the main reflector are comprised of aluminum sheets and ribs which are stretch-formed, and are riveted on the special mould, So its electric performance can fully meet the specifications associated with the internatianal standards.
6.2m earth station antenna Features
C-band and Ku-band frequency is as option
Compact packaging design for ease and low-cost shipping
We can provide linear and circular feed system
Strong antenna structure with guaranteed high quality
Hot-dip Galvanized structural steel
Self-aligning antenna reflector, using stretched aluminum
Motorized or fixed pedestals are available for your choice
2 port or 4 port can be selectable
No need to assemble and test feed system after receiving
6.2m earth station antenna Technical Specifications
6.2m earth station antenna ELECTRICAL SPECIFICATION | ||||
Diameter | 6.2M | |||
Operating Frequency, GHz | C-Band | Ku-Band | ||
Receive | Transmit | Receive | Transmit | |
3.625~4.2 | 5.85~6.425 | 10.95~12.75 | 13.75~14.5 | |
Gain, Mid-band, dBi | 46.43 | 50.0 | 56.18 | 57.11 |
Isolation, Tx to Rx, dB | 85 | |||
XPD across 1dB Beam Width, dB | 33 | 33 | 33 | 33 |
Feed Interface | CPR-229G | CPR-137G | WR-75 | WR-75 |
Antenna Noise Temperature, 2-port feed
10° Elevation 20° Elevation 40° Elevation |
35°K
26°K 24°K |
63°K
51°K 49°K |
||
Polarization | Linear/ Circular | Linear | ||
Axial Ratio (dB) | 1.30 | 1.09 | ||
Feed Insertion Loss, dB | 0.25 | 0.2 | 0.25 | 0.25 |
XPD (on Axis), dB | 35 | 35 | 35 | 35 |
Tx. Power Capability, KW | 5 | 2 | ||
VSWR | 1.25 | 1.25 | 1.25 | 1.25 |
-3dB Beam Width | 0.78° | 0.52° | 0.255° | 0.23° |
Radiation Pattern:First Sidelobe | CCIR.580-4 |
6.2m earth station antenna ENVIRONMENTAL SPECIFICATION | |
Operational Wind | 72km/h Gusting to97km/h |
Survival Wind | 200km/h |
Relative Humidity | 100% |
Solar Radiation | 1135Kcal/ h/ m2 |
Temperature | -45°C~ +60°C |
Seismic (Survival) | 0.3g (H),0.15g(V) |
6.2m earth station antenna MECHANICAL SPECIFICATION | |
Finishes
Reflector Surface Pedestal & Back Structure |
Aluminum panels with high-diffusing white paint
Hot-dipped Galvanized zinc |
Antenna Type | Ring Focus Antenna |
Antenna Pedestal Type | Kingpost Pedestal |
Elevation | 0°~90° |
Azimuth | ± 85° |
Antesky is a professional earth station antenna manufacturer, which was established in 1985 under the support of Chinese governmental
research institutions. At previous time, we mainly customized antennas for Chinese aerospace and military application. From the year 2008, we began to produce civilian antennas. However, Antesky manufactures civilian antennas according to military standard all the time, so the antenna quality is with high reputation in the world. Antesky can provide antennas from 3m diameter to 50m diameter, including vsat antenna, Large Satellite Dish, TVRO Antenna, Flyaway Antenna and Marine TV Antenna etc.
