Where to buy 4.5m VSAT antenna with low price and high quality. We are your best choice, all the information about 4.5m VSAT antenna are available as below.
4.5m VSAT antenna Description

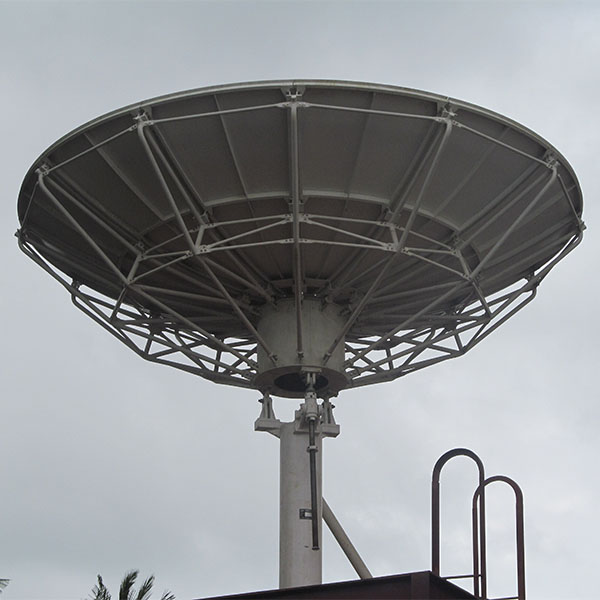

4.5m VSAT antenna, which uses a shaped parabolic reflector, provides high gain and exceptional pattern characteristics as well as low VSWR. The panels of 4.5m VSAT antenna are made of stretch-formed aluminum sheet and riveted on the precise mould; such structure has the characteristics of higher accuracy and strong rigidity. Our earth station antenna systems are available for a wide range of applications including wireless telecommunication service providers, Internet service provider, system operators and broadcasters throughout the world.
4.5m VSAT antenna Features
Offer selectable C-band and ku-band frequency
This antenna is made of hot-dip galvanizing steel structure
Both linear and circular polarization are available for you to choose
Ensured superior antenna structure
We can offer motorized and fixed pedestal
Support responsive customer service
Excellent electrical performance
4.5m VSAT antenna Technical Specifications
4.5m VSAT antenna ELECTRICAL SPECIFICATION | ||||
Diameter | 4.5M | |||
Operating Frequency, GHz | C-Band | Ku-Band | ||
Receive | Transmit | Receive | Transmit | |
3.625~4.2 | 5.85~6.425 | 10.95~12.75 | 14.0~14.5 | |
Gain, Mid-band, dBi | 43.64 | 47.22 | 53.4 | 54.33 |
Isolation, Tx to Rx, dB | 85 | |||
Polarization | Linear/ Circular | Linear | ||
Antenna Noise Temperature, 2-port feed
10° Elevation 20° Elevation 40° Elevation |
36°K
27°K 24°K |
60°K
50°K 44°K |
||
-3dB Beam Width | 1.08° | 0.715° | 0.35° | 0.315° |
VSWR | 1.25:1 | 1.25:1 | 1.25:1 | 1.25:1 |
Axial Ratio (dB) for CP 2/4 port | 1.30/1.06 | 1.06/1.06 | ||
Tx. Power Capability, KW | 5 | 2 | ||
Feed Insertion Loss, dB | 0.15 | 0.2 | 0.25 | 0.25 |
Feed Interface | CPR-229G | CPR-159G/137G | WR-75 | WR-75 |
XPD (on Axis), dB for LP | 35 | 35 | 35 | 35 |
XPD across 1dB Beam Width, dB for LP | 33 | 33 | 33 | 33 |
Radiation Pattern:First Sidelobe | CCIR.580-4 |
4.5m VSAT antenna MECHANICAL SPECIFICATION | |
Operational Wind | 72km/h Gusting to97km/h |
Survival Wind | 200km/h |
Relative Humidity | 100% |
Temperature | -40°C~ +60°C |
Solar Radiation | 1135Kcal/ h/ m2 |
Seismic (Survival) | 0.3g (H),0.15g(V) |
4.5m VSAT antenna MECHANICAL SPECIFICATION | |
Antenna Type | Ring Focus Antenna |
Finishes
Reflector Surface Pedestal & Back Structure |
Aluminum panels with high-diffusing white paint
Hot dipped Galvanized |
Azimuth | ±85° |
Elevation | 0°~90° |
Antenna Pedestal Type | Kingpost Pedestal |
Antenna Drive | Manual or Motorized drive |
Surface Accuracy (RMS) | ≤ 0.35mm |
Antesky is a professional vsat antenna manufacturer, which was established in 1985 under the support of Chinese governmental
research institutions. At previous time, we mainly customized antennas for Chinese aerospace and military application. From the year 2008, we began to produce civilian antennas. However, Antesky manufactures civilian antennas according to military standard all the time, so the antenna quality is with high reputation in the world. Antesky can provide antennas from 3m diameter to 50m diameter, including vsat antenna, Large Satellite Dish, TVRO Antenna, Flyaway Antenna and Marine TV Antenna etc.
