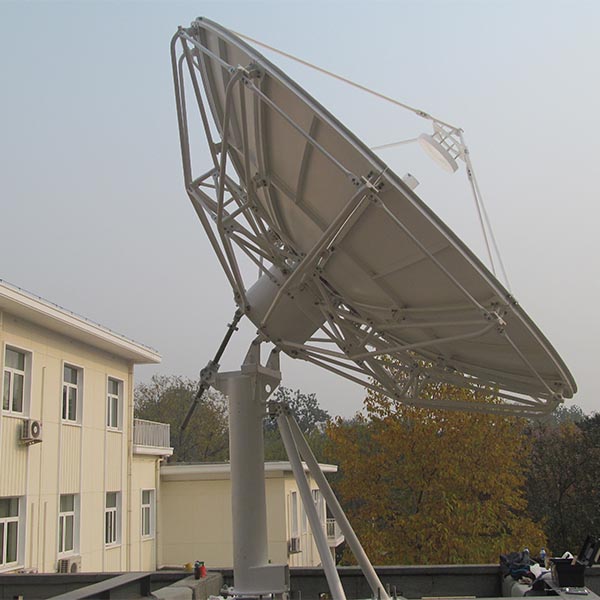

3.7 meter satellite dish

Where to buy 3.7 meter satellite dish with low price and high quality. We are your best choice, all the information about 3.7 meter satellite dish are available as below.

3.7 meter satellite dish Description

3.7 meter satellite dish is a kind of dual reflector antenna with high gain, low sidelobe, low VSWR and special pattern. The reflectors are stretch forming and rivieted with rings and ribs on precise mould. We can provide C-band and Ku-band frequency band for you. This kind of antenna is easy and stable to install. The reflector is shaped parabolic and dual shaped shifted focal axis. This product of our company can meet the requirement of INTELSAT IESS and CCIR Rec.580-4, INMARSAT, ASIASAT, APT and CHINASAT, etc. standard.

3.7 meter satellite dish Features

Different feed system choices: C-band, Ku-band etc.

Structural steel is dealt with hot-dip galvanized craft

Our pedestals are selectable, fixed or motorized

Self Aligning reflector with aluminum stretched reflector

There are different frequency band: C-band, Ku-band etc.

Adopt anti-rust surface and stable structure

Customer service support is responsive

Our antenna has very good electrical performance

3.7 meter satellite dish Technical specifications

3.7 meter satellite dish ELECTRICAL SPECIFICATION
Diameter	3.7M
Operating Frequency, GHz	C-Band		Ku-Band
	Receive	Transmit	Receive	Transmit
	3.625～4.2	5.85～6.425	10.95～12.75	14.0～14.5
Gain, Mid-band, dBi	41.94	45.52	51.7	52.63
Radiation Pattern:First Sidelobe	CCIR.580-4
Tx. Power Capability, KW		5		2
Isolation, Tx to Rx, dB	85
Polarization	Linear/ Circular		Linear
-3dB Beam Width	1.31°	0.87°	0.42°	0.38°
Feed Insertion Loss, dB	0.2	0.2	0.25	0.25
XPD (on Axis), dB	35 33 1.25	35 33 1.25	35 33 1.25	35 33 1.25
XPD across 1Db Beam Width, dB
VSWR
Antenna Noise Temperature, 2-port feed 10° Elevation 20° Elevation 40° Elevation	36°K30°K 25°K		50°K44°K 38°K
Feed Interface	CPR-229G	CPR-137G	WR-75	WR-75

3.7 meter satellite dish ENVIRONMENTAL SPECIFICATION
Operational Wind	72km/h Gusting to97km/h
Survival Wind	200km/h
Seismic (Survival)	0.3g (H),0.15g(V)
Solar Radiation	1135Kcal/ h/ m²
Temperature	-40°C～ +60°C
Relative Humidity	100%

3.7 meter satellite dish MECHANICAL SPECIFICATION
Azimuth	±85° (2 segments)
Elevation	0°～90°(Continuous)
Finishes Reflector Surface Pedestal & Back Structure	Aluminum panels with high-diffusing white paintHot dip Galvanized Zinc
Surface Accuracy (RMS)	≤ 0.35mm

Antesky is a professional VSAT Antenna manufacturer, which was established in 1985 under the support of Chinese governmental

research institutions. At previous time, we mainly customized antennas for Chinese aerospace and military application. From the year 2008, we began to produce civilian antennas. However, Antesky manufactures civilian antennas according to military standard all the time, so the antenna quality is with high reputation in the world.
