2.4m dish for sale
Where to buy 2.4m dish with low price and high quality. We are your best choice, all the information about 2.4m dish are available as below.
2.4m dish Description

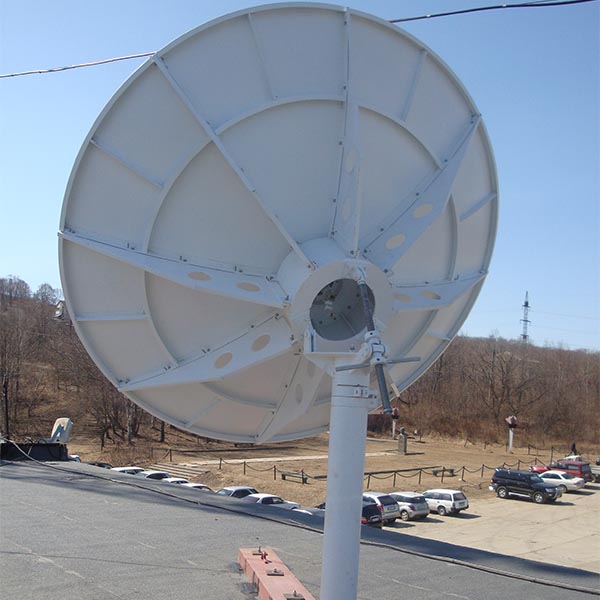

2.4m dish is antenna with shaped parabolic reflector and C/Ku band. Our antenna has good electric performance which meets the FCC regulation 25.209, IESS(Intelsat), or ITU-RS Recommendation 580 sidelobe specification. It also has the features of high gain, exceptional pattern and low VSWR.
2.4m dish Features
We can provide C-band and Ku-band frequency
The feed system has been installed and tested OK before delivering
Both linear and circular feed system are available for you
Steel structure after hot-dip galvanizing craft
With stable structure and corrosion resistance
Different mount types: non-penetrating or penetrating mount
You can get responsive customer service
2.4m dish Technical Specifications
2.4m dish ELECTRICAL SPECIFICATION | ||||
Diameter | 2.4M | |||
Operating Frequency, GHz | C-Band | Ku-Band | ||
Receive | Transmit | Receive | Transmit | |
3.625~4.2 | 5.85~6.425 | 10.95~12.75 | 14.0~14.5 | |
Gain, Mid-band, dBi | 38.18 | 41.76 | 47.94 | 48.87 |
-3dB Beam Width | 2.03° | 1.34° | 0.66° | 0.59° |
Axial Ratio (dB) For Circular Pol. | 1.30 | 1.09 | ||
Polarization | Linear/ Circular | Linear | ||
Feed Insertion Loss, dB | 0.2 | 0.2 | 0.25 | 0.25 |
Tx. Power Capability, KW | 5 | 1 | ||
Cross Polarization Isolation for Linear Pol. | ||||
VSWR | 1.25:1 | 1.25:1 | 1.25:1 | 1.25:1 |
Feed Interface | CPR-229G | CPR-159G/137G | WR-75 | WR-75 |
Antenna Noise Temperature, 2-port feed
10° Elevation 20° Elevation 40° Elevation |
38°K
31°K 24°K |
52°K
43°K 38°K |
||
across 1dB Beam Width, dB | ≥33dB | |||
(on Axis), dB | ≥35dB | |||
Isolation, Tx to Rx, dB | 85 | |||
Radiation Pattern:First Sidelobe | CCIR580-4 |
2.4m dish MECHANICAL SPECIFICATION | ||
Antenna Type | Ring Focus Antenna | |
Surface Accuracy (RMS) | ≤ 0.35mm | |
Elevation | 0°~90° | |
Finishes | Reflector Surface
Pedestal & Back Structure |
Aluminum panels with high-diffusing white paint
Hot dipped Galvanized |
Antenna Pedestal Type | Kingpost Pedestal | |
Antenna Drive | Manual or Motorized drive | |
Azimuth | 0°~360° |
2.4m dish ENVIRONMENTAL SPECIFICATION | |
Operational Wind | 72km/h Gusting to97km/h |
Survival Wind | 200km/h |
Seismic (Survival) | 0.3g (H),0.15g(V) |
Relative Humidity | 100% |
Solar Radiation | 1135Kcal/ h/ m2 |
Temperature | -40°C~ +60°C |
Antesky is a professional VSAT Antenna manufacturer, which was established in 1985 under the support of Chinese governmental research
institutions. At previous time, we mainly customized antennas for Chinese aerospace and military application. From the year 2008, we began to produce civilian antennas. However, Antesky manufactures civilian antennas according to military standard all the time, so the antenna quality is with high reputation in the world. Antesky can provide antennas from 3m diameter to 50m diameter, including vsat antenna, Large Satellite Dish, TVRO Antenna, Flyaway Antenna and Marine TV Antenna etc.
